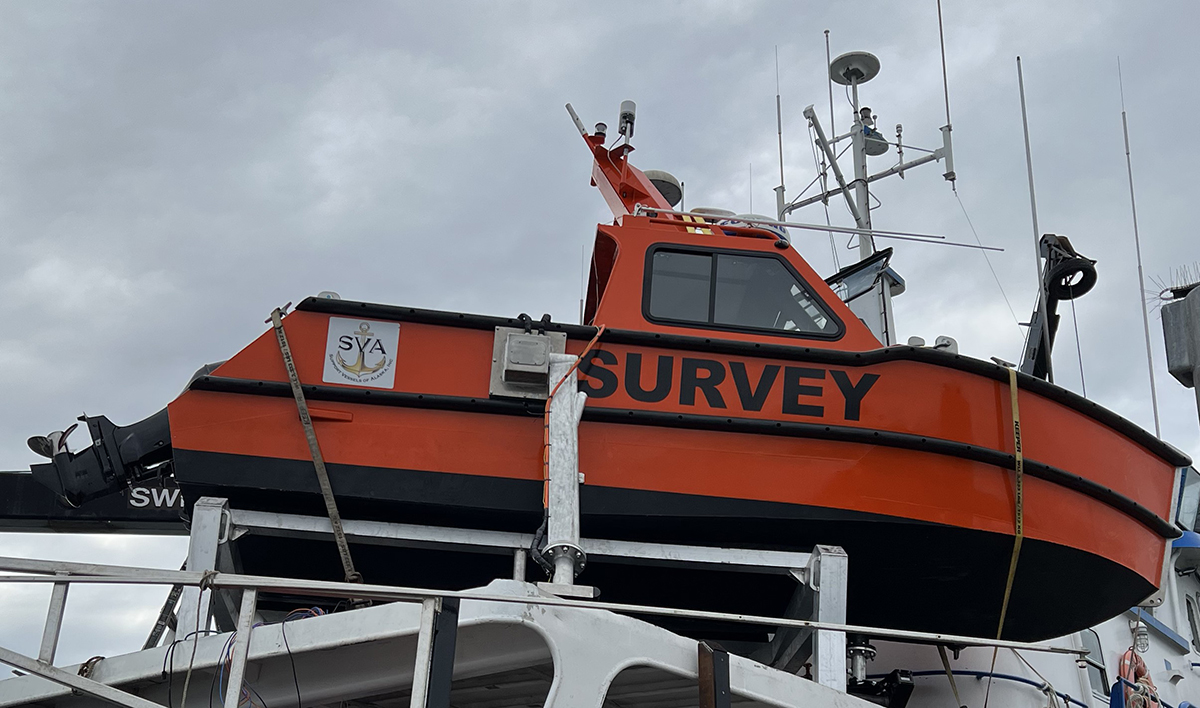

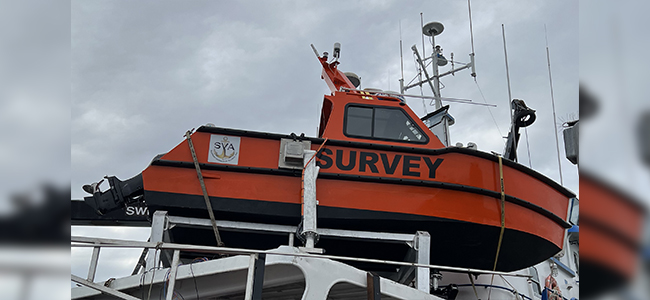

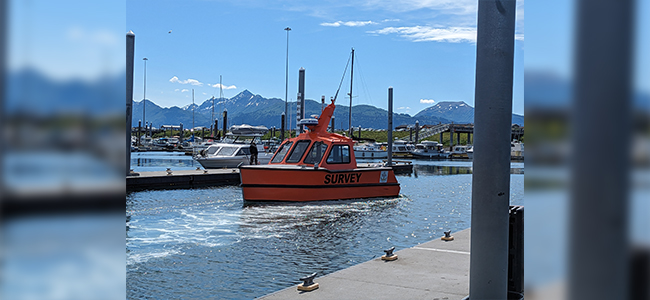

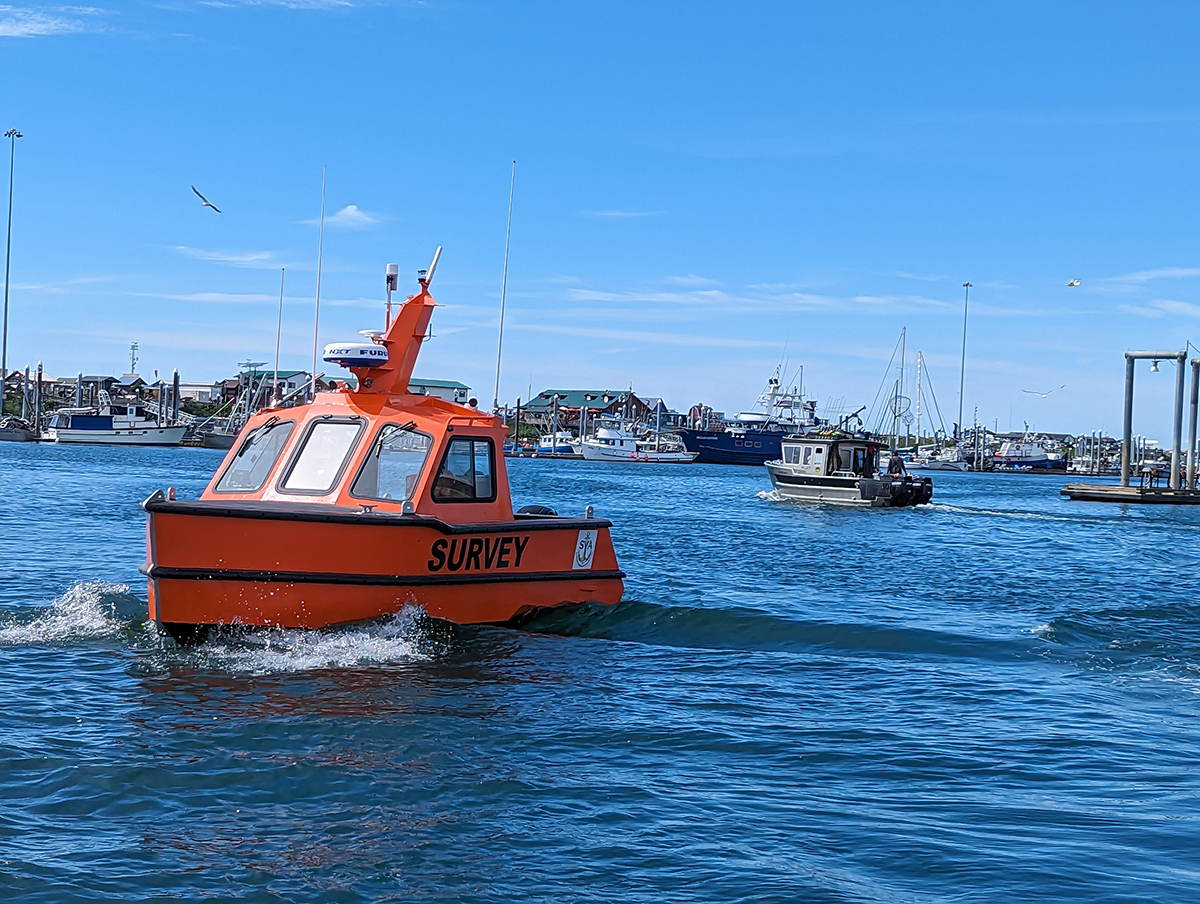

AUTONOMOUS SURFACE VESSEL (ASV-LR1)

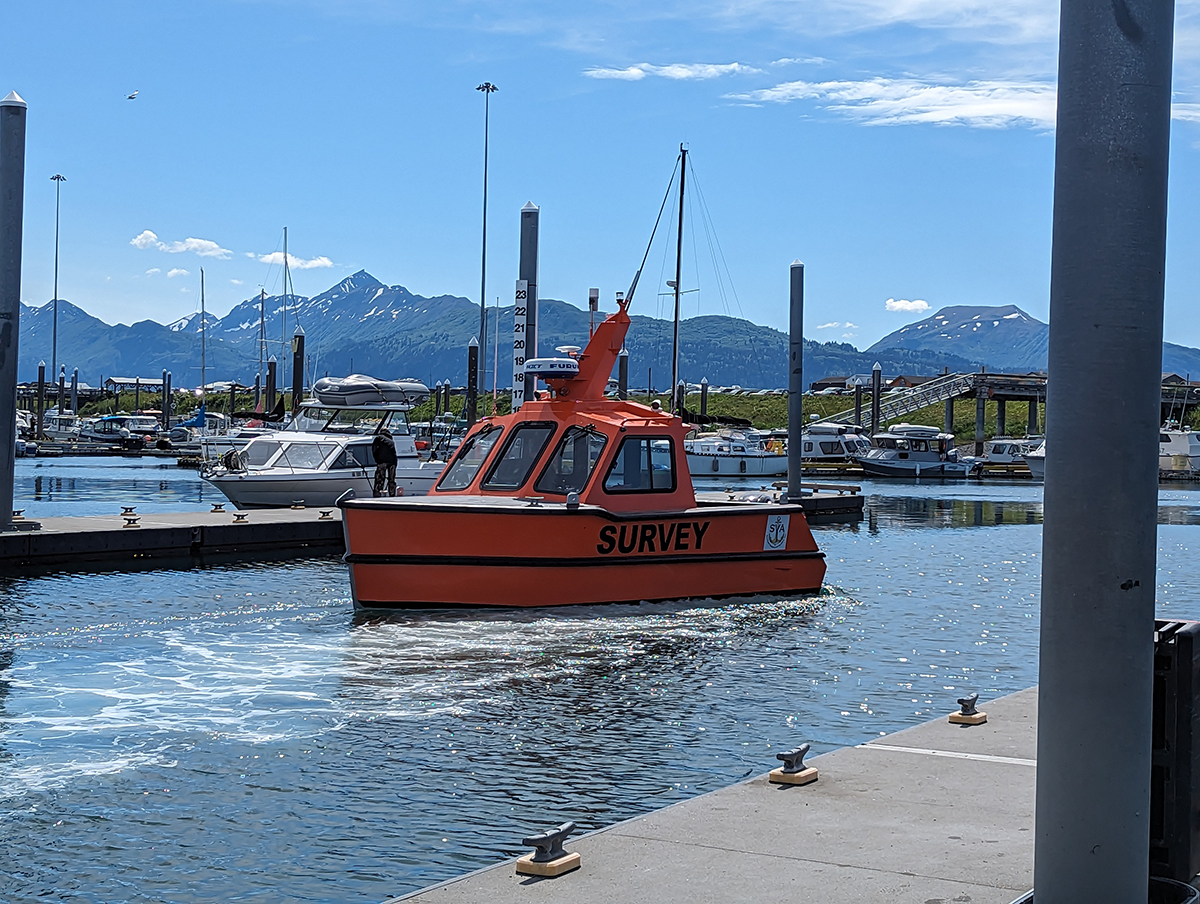

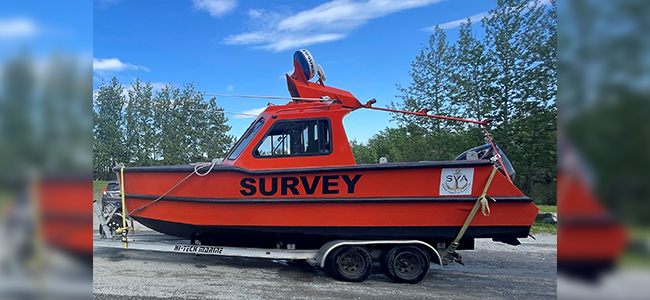

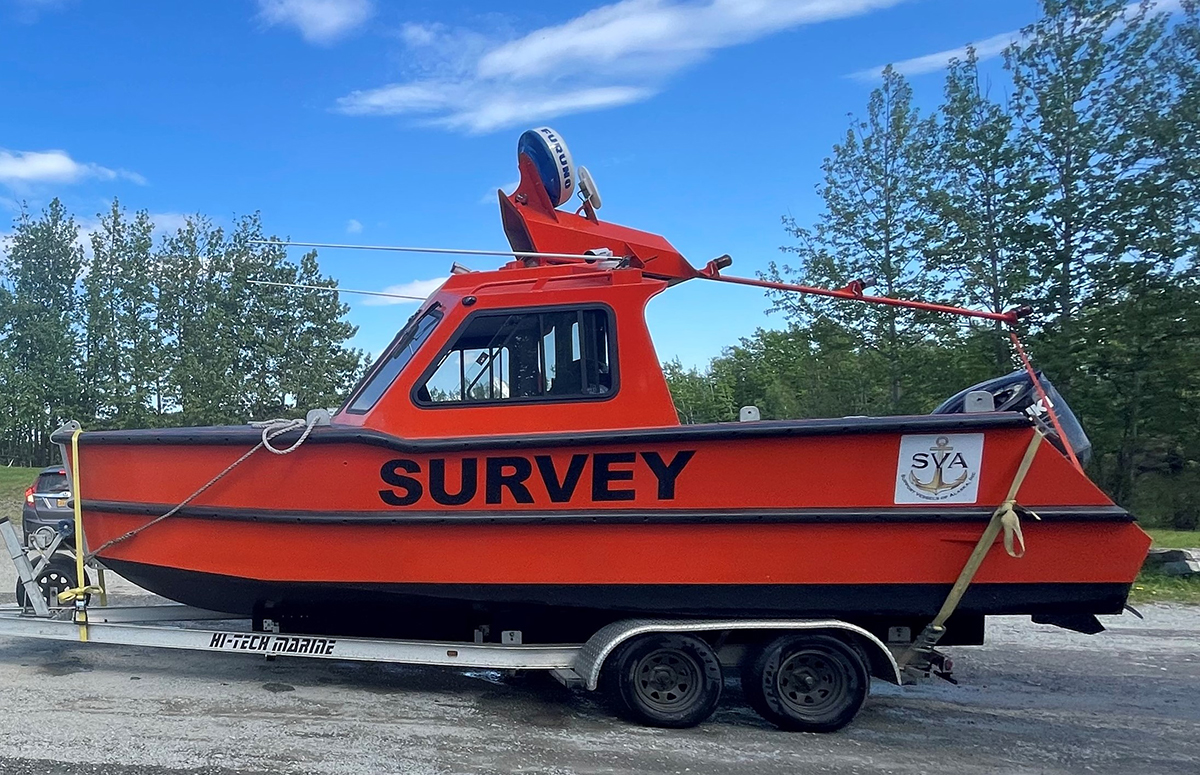

MEET THE LR-1: REDEFINING VERSATILITY IN MARINE OPERATIONS
The LR-1 (Long-Range #1) is engineered to adapt to your needs, whether operating autonomously or with a crew
on board. From deep ocean exploration to navigating rocky coastlines, the LR-1 seamlessly integrates autono-
mous and crewed operations to tackle even the most demanding survey tasks.
With exceptional speed, stability, and endurance, the LR-1 delivers superior performance in challenging sea
conditions, setting a new industry standard for range and reliability, especially when paired with a mothership.

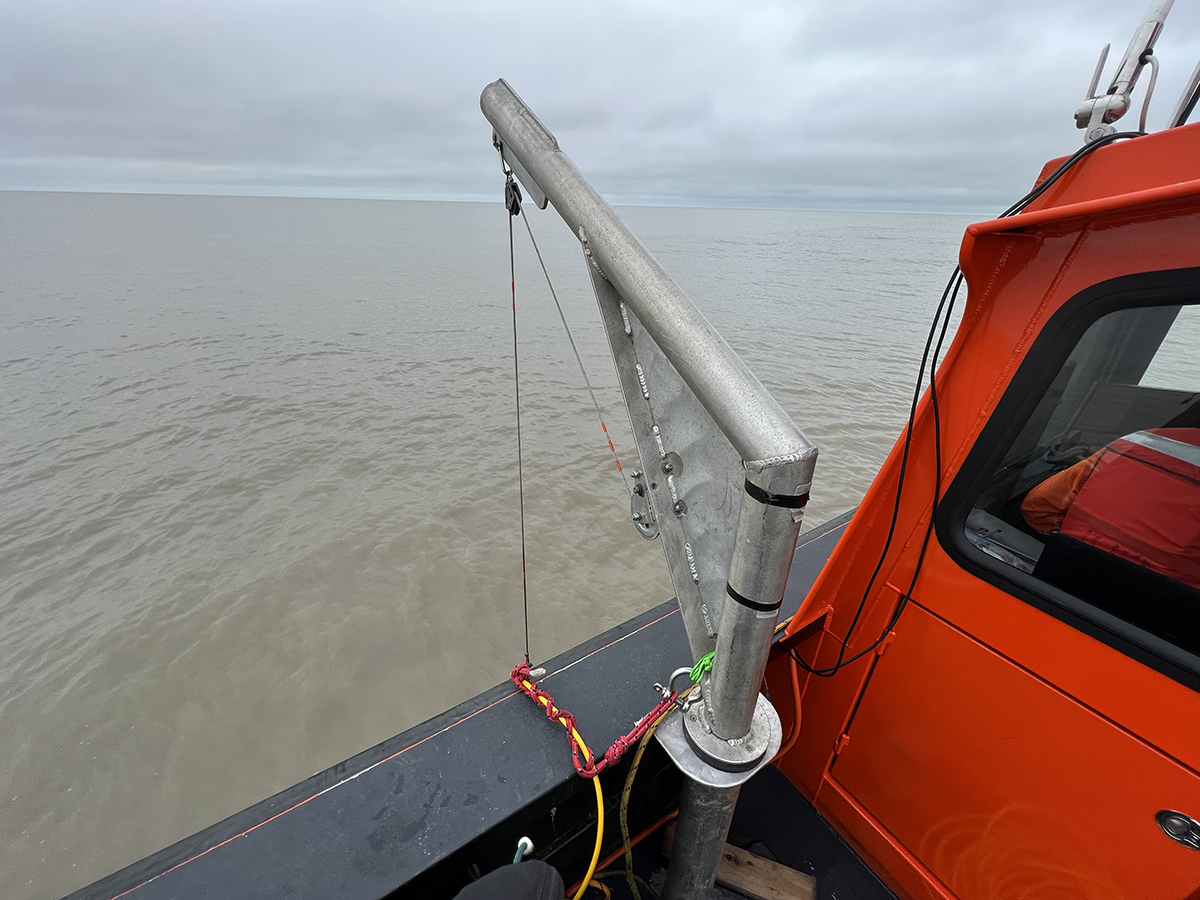

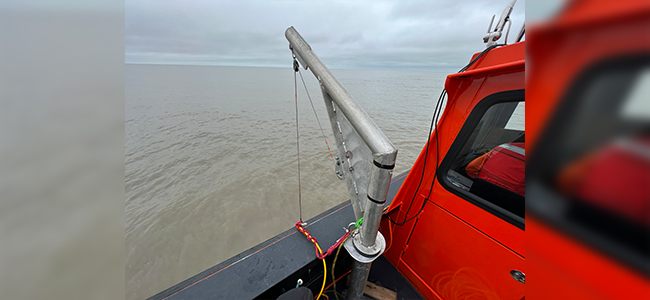

Outfitted with a fixed hull mount and a hydraulic over-the-side arm, it can accommodate a wide array of sensors, making it the ultimate tool for diverse mission requirements.
Discover the unmatched versatility of the LR-1.Where precision meets efficiency.
Specs
Flag of Registry: USA
Autonomous vessel
Manufacturer: Custom
Year Built: 2023
Hull: Aluminium
Hull Shape: V-shaped
Dimensions
LOA: 25’
Beam: 9’
Maximum Draft: 2’
Engines (1) Outboard
Engine(s): Yamaha 150 Outboard
Total Power: 150 HP.
Cruising Speed: 14 knots
Maximum Speed: 22 knots
Passengers
6 Max
Tankage
Fuel: 250 gallons
Electrical
110 -12 Volt

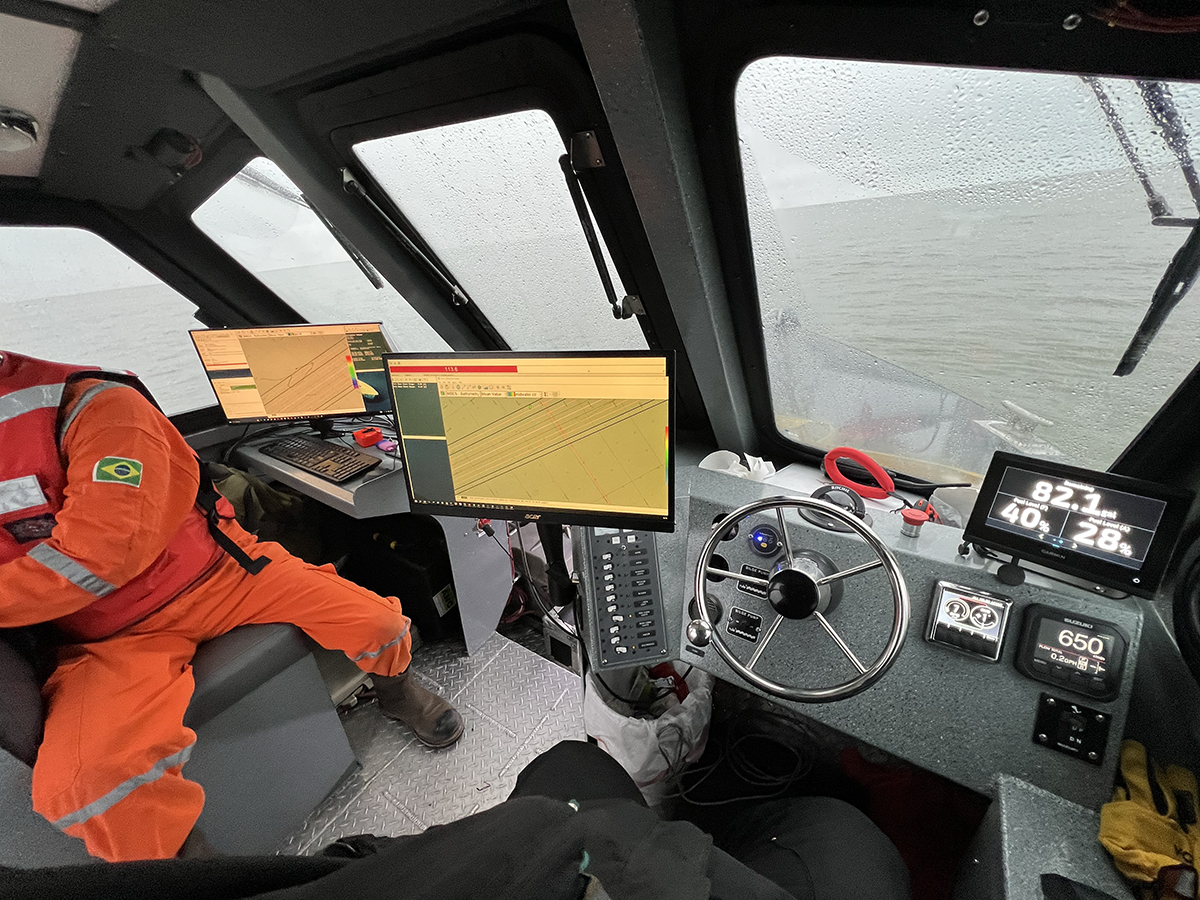

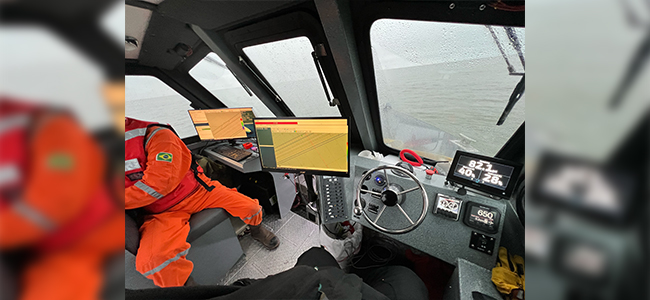

Electronics
VHF
Garmin Forward Scanning
Depth Sounder
Time Zero Chart Plotter
with radar overlay
Furuno Radar
Class B AIS transmitter/receiver
Garmin GPS
MBR communication
Satellite Communications
Starlink
Additional Equipment
Generator 3kw 110VAC
Heated Cabin
Multi-beam attachments, both
hydraulic arm and hull mount
